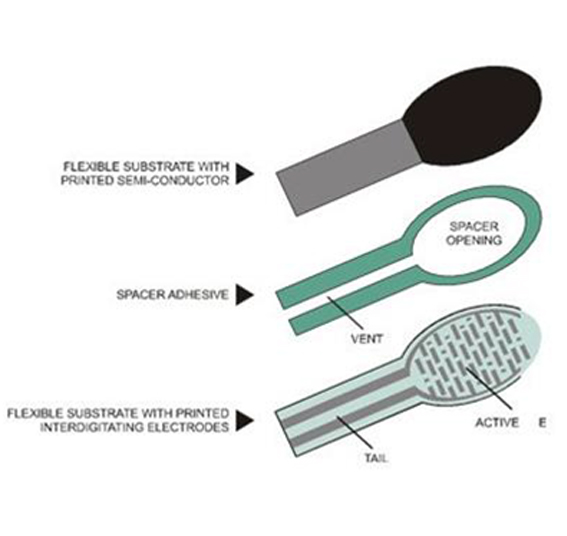

FSRs are sensors that allow you to detect physical pressure, squeezing and weight. They are simple to use and low cost.FSRs are basically a resistor that changes its resistive value (in ohms Ω) depending on how much it is pressed. These sensors are fairly low cost, and easy to use but they're rarely accurate. They also vary some from sensor to sensor perhaps 10%. So basically when you use FSRs you should only expect to get ranges of response.

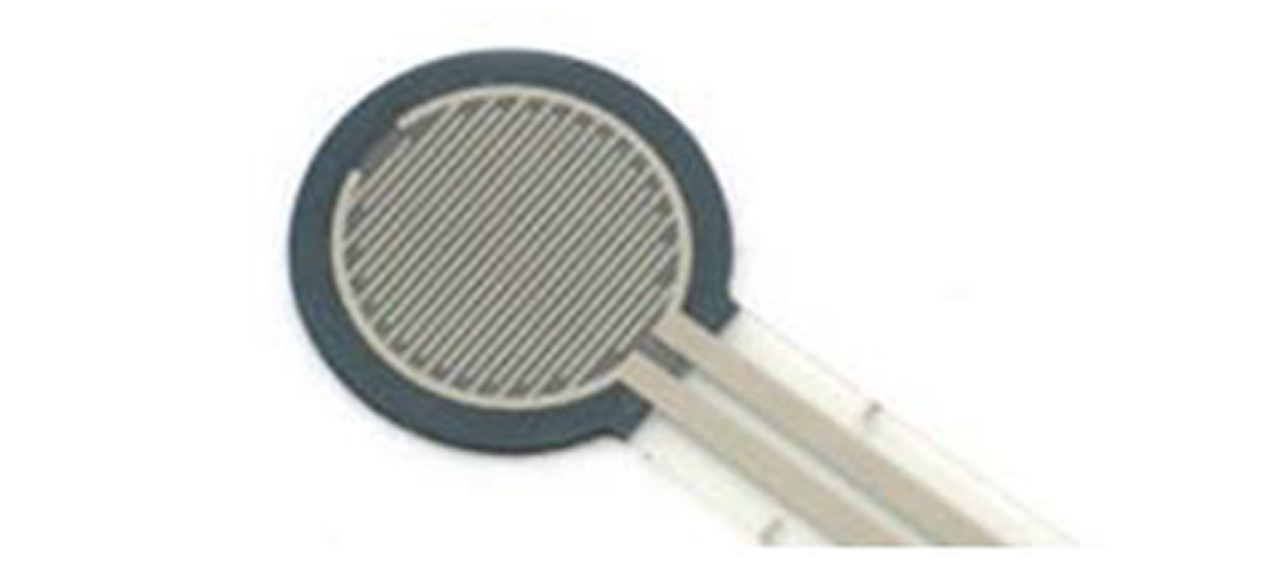

Sensing Area: 12 mm (circular sensing area)
Connector:Type: 2-pin female connector
Pin spacing: 2.54 mm
Operating Temperature Range: From -50°C to 75°C
Force Range: 200 grams to 20 kilograms
Sensitivity: Resolution: 200 grams
The Resistance characterization is as trailing for different load in grams . The Graph will be trailing as follows
| Sl.No | Weight(grams) | Resistance(Kohms) | Conductance |
| 01 | 500 | 239.6 | 4.17E-03 |
| 02 | 1000 | 83.6 | 1.20E-02 |
| 03 | 2000 | 63.57 | 1.57E-02 |
| 04 | 3000 | 49.89 | 2.00E-02 |
| 05 | 4000 | 37.23 | 2.69E-02 |
| 06 | 5000 | 36.54 | 2.74E-02 |
| 07 | 7500 | 32.89 | 3.04E-02 |
| 08 | 10000 | 29.89 | 3.35E-02 |
| 09 | 15000 | 28.67 | 3.49E-02 | 01 | 3.76/td2 | 239.6 | 4.17E-03 |

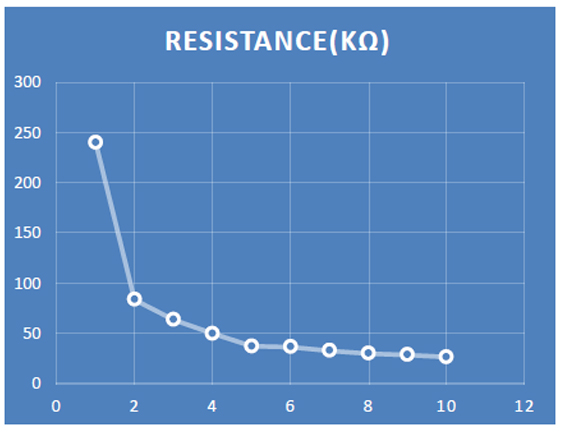

The Graph will be trailing as follows
